LumiPlex-HP Mouse

Programmable High-Power LED Light Delivery for Laboratory Mice

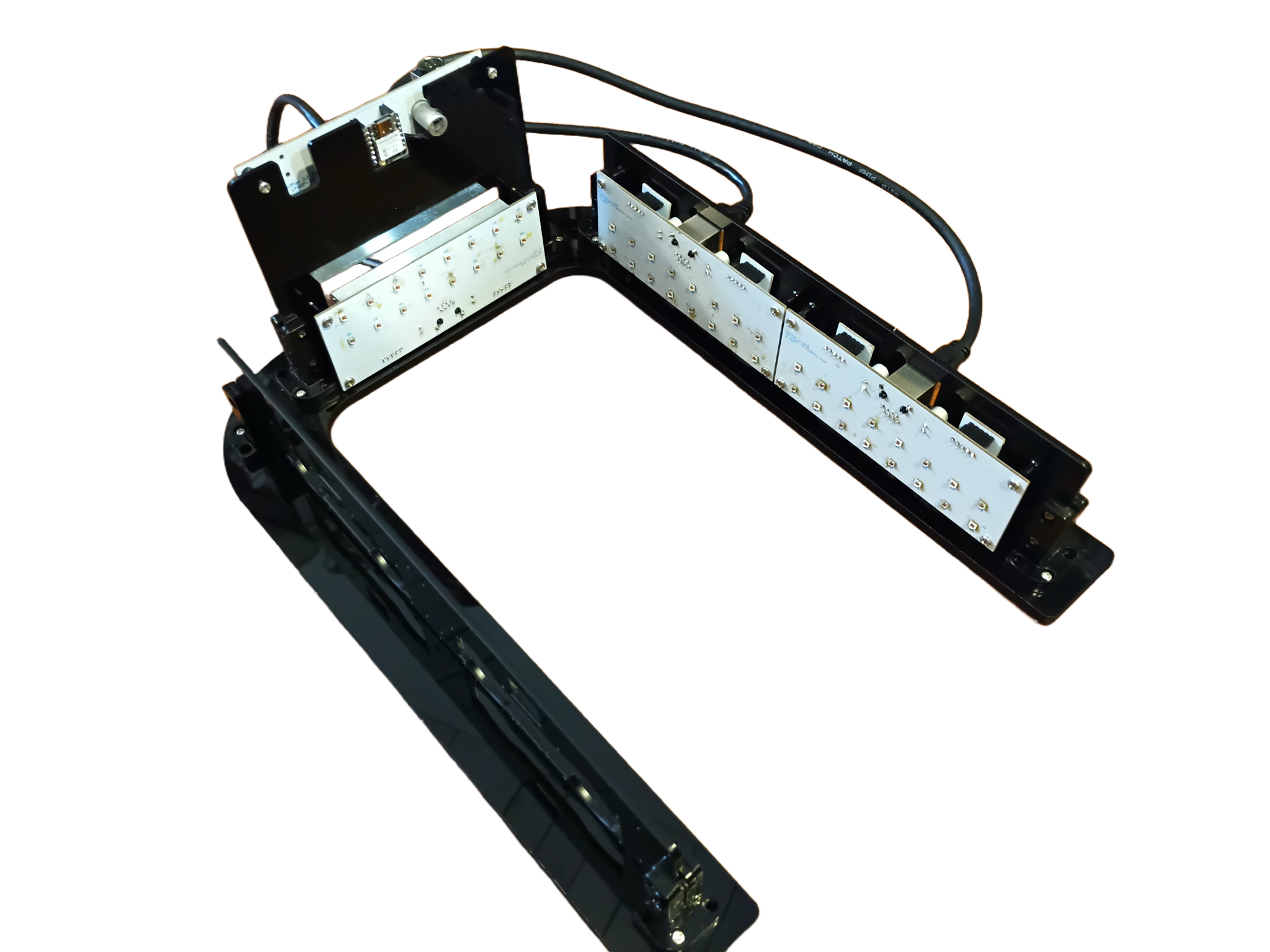

LumiPlex-HP Mouse

Key Features

Customizable Form Factor

Made-to-order base design fits any mouse cage with 270° (standard) or 360° (optional) coverage.

Broad Wavelength Support

Supports a wide spectrum from UV to NIR. See our detailed wavelength options for more information.

High Power Output

Delivers up to 220W of total system power, achieving irradiance levels from 35 to over 100 mW/cm².

Precision Power and Timing Control

Fine-grained, flicker-free control over power output and timing schedules for highly repeatable experiments.

Dual-Channel Control

Independent control of 2 separate wavelength LED channels per system.

Wireless Interface

Manage experiments easily via a web-based, WiFi-enabled interface.

Cage Monitoring Add-on

Optional environmental sensors (Temp/Humidity/VOC) and camera for video recording.

Cooling Options

System includes passive cooling, with optional fan-based active cooling for high-power applications.

User-Friendly Irradiance Measurement and Calibration

Connectable power meter to measure irradiance vs power setting at various points in the cage

Pricing & Delivery

Pricing
Under $5,000
Complete system
Lead Time
8 weeks
From order to delivery

What to Expect

Quick Setup
~1 hour
2-year Warranty
2-year full coverage, plus pro-rated repairs or replacements for years 3 and 4
Training Included
Setup assistance and software training included
Ongoing Support
Email and scheduled video-call support included

What's Included

Hardware

  • Control Board
    Central WiFi-enabled controller
  • LED Boards
    Your choice of 1-6 modular dual-channel boards
  • Power Supply
    24V DC, 220W with safety features
  • Mounting System
    Custom-configured acrylic mounting base
  • Cables & Accessories
    All necessary wiring and connectors

Support & Services

  • Custom Configuration
    System configured to your cage dimensions
  • Setup Assistance
    ~1 hour guided installation support
  • Software Training
    Web interface walkthrough
  • Technical Support
    Ongoing email and video-call support
  • Software Updates
    Lifetime software updates included

Wavelength Options

Short Range

Name Range (nm) Irradiance (mW/cm²)
Violet
400-410nm N/A
Royal Blue
450-465nm N/A
Blue
465-485nm N/A
Green
520-535nm N/A

Mid Range

Name Range (nm) Irradiance (mW/cm²)
Amber
585-595nm N/A
Red-Orange
610-620nm N/A

Long Range

Name Range (nm) Irradiance (mW/cm²)
Red
620-630nm 20-75 mW/cm² (avg. 35)
Photo Red
650-670nm 25-110 mW/cm² (avg. 70)
Far Red
720-740nm N/A

UV Range

Name Range (nm) Irradiance (mW/cm²)
UVB
310-320nm N/A
UVA
365-375nm N/A

NIR Range

Name Range (nm) Irradiance (mW/cm²)
NIR 810
800-820nm N/A
NIR 850
840-860nm N/A
NIR 940
930-950nm N/A

Ready to Advance Your Research?

The Lumiplex-HP Mouse Photoirradiation System represents a breakthrough in laboratory light delivery technology. Designed specifically for mouse research, this modular platform combines precision engineering with intuitive software control to enable cutting-edge studies in photobiomodulation, optogenetics, photodynamic therapy, and circadian biology.

Contact our team to discuss your specific requirements and configure a Lumiplex-HP system optimized for your research program. We’re here to ensure you have the right tools to answer your most important scientific questions.
